3D profile for Sheldon 7/8" door.
945 Mullion used for East Coast Manufacturing

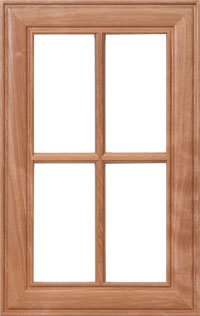

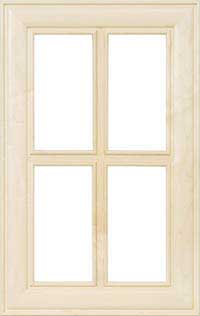

Sheldon 7/8" French Lite Door (838F)
- Minimum Width: 12.5"
- Maximum Width: 30"
- Minimum Height: 12.5"
- Maximum Height: 72"
- Thickness Of Door: 0.875"
- Center Rail at: 196.8504"
A1: If one minimum is used, add 2" to the other.
B5: If changes to type or placement of grooves is wanted, call for availability and pricing.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
I2: Requires additional delivery time.
G3: Beaded panel grooves are 2" apart.
S4: Beaded grooves come on or off center depending on the width of the door.
Y4: Absolute maximum door width with no center stile is 32-1/2", no guarantee.
H9: Below minimum size W" x H" order as a 5-Piece drawer front.
