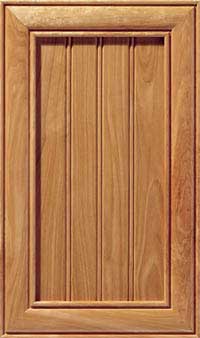

Sheldon 7/8" Door (838)

  • Minimum Width: 7.5"
  • Maximum Width: 26"
  • Minimum Height: 7.5"
  • Maximum Height: 48"
  • Thickness Of Door: 0.875"
  • Center Rail at: No Center Rail

A1: If one minimum is used, add 2" to the other.

B5: If changes to type or placement of grooves is wanted, call for availability and pricing.

C1: Maximum can be exceeded with No Guarantee and possible option charge.

I2: Requires additional delivery time.

G3: Beaded panel grooves are 2" apart.

S4: Beaded grooves come on or off center depending on the width of the door.

Y4: Absolute maximum door width with no center stile is 32-1/2", no guarantee.

H9: Below minimum size W" x H" order as a 5-Piece drawer front.
