Quality. Innovation. Convenience. Designer Face Frames make it easy for cabinetmakers to offer classy, designer-inspired looks without the hassle of making their own face frames.

Face Frame Program:

  • 16 Unique Frame Edge Options.

  • 3/4” or 7/8” Frame Thickness.

  • High-End Haunch Joint Construction.

  • Custom Configurations.

  • Available Assembled or Unassembled.

  • Available with Water-based Finishes.




Shown: Rope Inset MoldIng (Fe-2) alder Finish grade with Cinnamon/Tierra, semi-gloss sheen

The New Face for Frames

Quality. Innovation. Convenience. Designer Face Frames make it easy for you to offer classy, designer-inspired looks without the hassle of making your own face frames. Improve your work flow and simplify your shop process by combining your order for Designer Face Frames with doors, molding, accessories, and sheet goods all finished with our Water-based Finishes line of quality finishes.

Inset Molding Face Frames

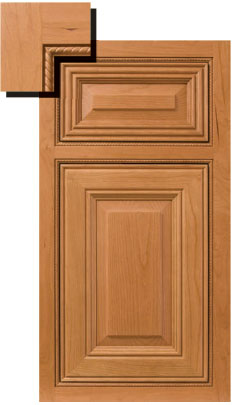

Rope Inset MoldIng (Fe-2) Alder Finish Grade
Rope Inset MoldIng (Fe-2) Alder Finish Grade
with Cinnamon/Tierra, Semi-Gloss Sheen

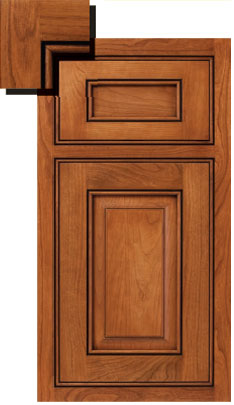

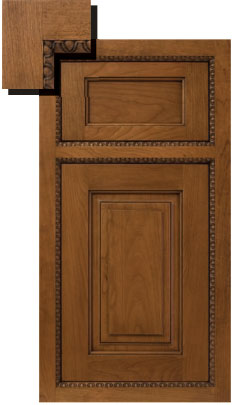

Cord Inset MoldIng (Fe-2) Cherry Finish Grade
Cord Inset MoldIng (Fe-2) Cherry Finish Grade
with Honey, Satin Sheen

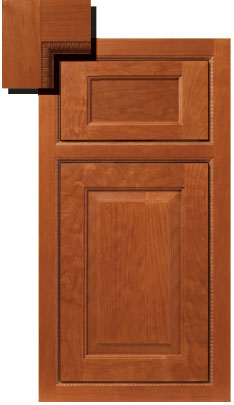

Dart Inset MoldIng (Fe-2) Cherry Finish Grade
Dart Inset MoldIng (Fe-2) Cherry Finish Grade
with Honey/Umber, Satin Sheen
Arrow Inset MoldIng (Fe-2) Maple Finish Grade
Arrow Inset MoldIng (Fe-2) Maple Finish Grade
with Cinnamon, Semi-Gloss Sheen

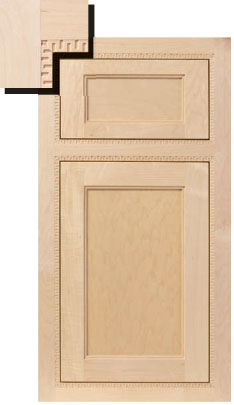

Greek Inset MoldIng (Fe-2) Maple Finish Grade
Greek Inset MoldIng (Fe-2) Maple Finish Grade
with Clear, Satin Sheen

Beaded and Beveled Face Frames

Sqaure Notch (Fe-3) Alder Finish Grade
Sqaure Notch (Fe-3) Alder Finish Grade
with Barley/Tierra, Satin Sheen

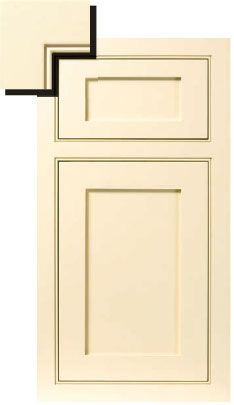

1/8” Bead (Fe-6) MDF Panel / Maple Paint Grade
1/8” Bead (Fe-6) MDF Panel / Maple Paint Grade
with White Chocolate, Semi-Gloss Sheen

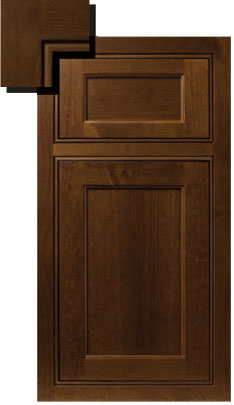

1/4” Bead (Fe-7) Cherry Finish Grade
1/4” Bead (Fe-7) Cherry Finish Grade
with Clear/Tierra, Satin Sheen
1/4” Half Bead (Fe-5)* Alder Finish Grade
1/4” Half Bead (Fe-5) * Alder Finish Grade
with Gingerbread, Satin Sheen
* Also available in 1/8” Half Bead (FE-4)

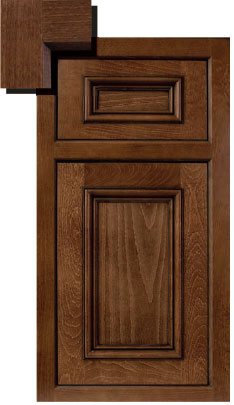

1/4” Bevel (Fe-8) * Beech Finish Grade
1/4” Bevel (Fe-8) * Beech Finish Grade
with Nutmeg/Iron, Semi-Gloss Sheen
* Also available in 3/8” Bevel (FE-9)

Decore-ative Specialties Face Frames

Designer Face Frames offer the extensive options you need to customize your work with 13 unique designs: beaded, inset molding, and square frame options. Plus additional options of curved frames are available as part of our Radius Face Frame offering. You can choose either 3/4” thick frames (395) or 7/8” thick frames (396). All beads and moldings are stepped down from the frame.

Square, Beaded, & Beveled Face Frames

Our offering of beaded and beveled face frames allow you to offer traditional beaded frames and also customized square and half bead options.

Inset Molding Face Frames

Unlike anything else in the market, these stylish face frames dress up any setting.

Radius Face Frames

Our Designer Face Frame can be ordered as part of our 12”, 18”, and 24” Standard Radius Program in convex or concave shapes. Currently, non-standard radius shapes are not available in face frames. Radius Face Frames are not available in all species.

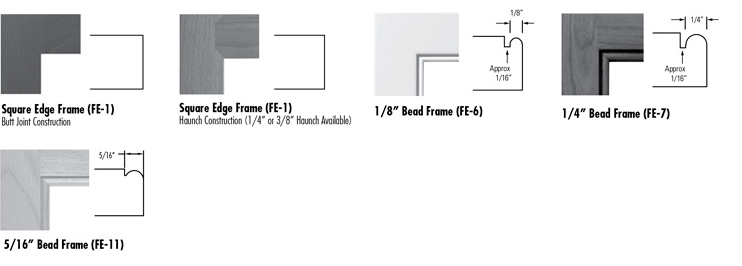

Square, Beaded & Beveled Face Frame Profiles

Square, Beaded & Beveled Face Frame Profiles

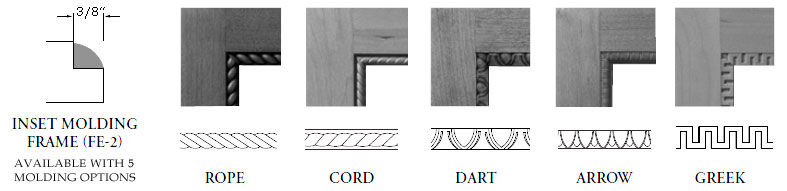

Inset Molding Face Frame Profiles

Inset Molding Face Frame Profiles

Configuration Options

Configuration 201
Configuration 201
Configuration 202
Configuration 202
Configuration 203
Configuration 203
Configuration 204
Configuration 204
Configuration 205
Configuration 205
Configuration 206
Configuration 206
Configuration 208
Configuration 208
Configuration 209
Configuration 209
Configuration 210
Configuration 210

* Configuration 207 - From simple to complex, provide us the drawings and measurements of the configuration you need if it is not one of the nine options above. Custom configurations may be subject to additional option charges.

Specifications

Material Options

Face frames are available in 3/4” and 7/8” thickness. Face Frames are available in most wood species offered by Decore-ative Specialties except Medium Density Fiberboard (MDF). There are material limitations for Inset Molding Frame (FE-2) which are listed in our pricing guide. Check for availability when ordering.

Color & Grain

The material grade requested is for the face of the face frame. The back will be a lower grade than the face.

Finishing

Face frames are offered with Water-based Finishes for your convenience. The back side of face frames will not be finished. If you required finished backs please indicate that on your quote and order. Please specify the desired Finish Grade material when placing your order.

Construction Method

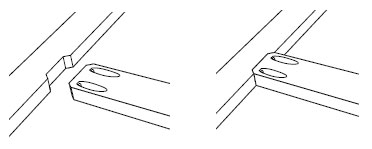

A high quality haunch method of construction is used for our face frames to provide added durability. The Square Edge (FE-1) Frames can be ordered with butt joint or haunch construction (at no additional cost.)

Assembly Options

Face frames are drilled and assembled with pocket screws and glue. Face frames can also be ordered ready-to-assemble (RTA) so all you have to do is assemble, sand, and finish.
Specifications Profile

Minimums and Maximums

Stile and Rail width minimums are determined by the Frame Profile you are selecting.
  • FE-1, FE-4, FE-6, and FE-8 Frame Edges have a preferred miniumum of 1-1/2".
  • FE-2, FE-3, FE-5, FE-7, FE-9, FE-10, FE-11, and FE-12 Frame Edges have a preferred minimum of 1-3/4".
Minimums and Maximums
  1. If one dimension is greater than 48" the other dimension must be less than or equal to 48".
  2. Maximum size for FedEx shipments is smaller than listed maximum size.
  3. Due to machinery considerations we cannot manufacture under the minimum size.
  4. Opening sizes can be manufactured under Minimum and will include a special option fee.

Face Frames are manufactured to the nearest 1/16”.
* Maximum size can be exceeded with production approval
**Production may require frames be sent unassembled due to size restrictions

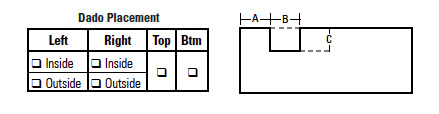

Dado Options

You can specify Dado placement for the Top, Bottom, Left, Right, two on Left, and/or two on Right. Placement is determined by looking at the front of the frame.

For top & bottom frame widths 1-1/2” to 2-1/2” only one pocket screw will be used.

Specify on the order form which lines require dados and their placement on the frame. For the right side and left side, mark inside and/or outside on the order form.

Dado Options

Dado Size Options
Dado Size Options

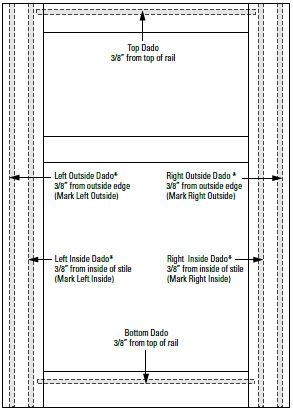

Front View of Face Frame *
Dado Options
* Dado placement is determined by looking at the face of the frame
