3D profile for Sullivan 3/4" door.

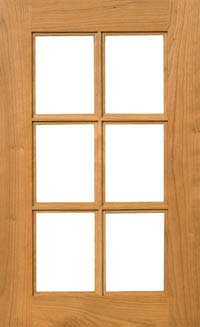

Sullivan 3/4" French Lite Door (386F)
- Minimum Width: 7.5"
- Maximum Width: 30"
- Minimum Height: 7.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
A1: If one minimum is used, add 2" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
E1: Center rail required at 48" and above.
N1: Center rail required on glass doors at 66" and above.
H2: Door comes standard No Lip/No Detail (NLND).
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
Y5: For this style, there is an Absolute Minimum size that is less than the Cut Down Minimum. It is available at an additional cost.
