3D profile for Patriot 7/8" door.

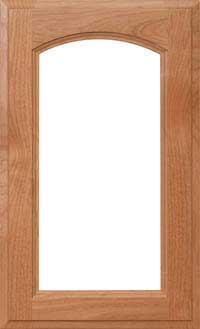

Patriot 7/8" Glass Door (57G)
- Minimum Width: 10"
- Maximum Width: 26.75"
- Minimum Height: 9.5"
- Maximum Height: 72"
- Thickness Of Door: 0.875"
- Center Rail at: 65.9843"
B1: If one minimum is used, add 4" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
F1: Center rail required at 48" and above and is not arched.
N1: Center rail required on glass doors at 66" and above.
F2: Arched rail height at side of rail varies with width.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
D9: Double arch doors available.
