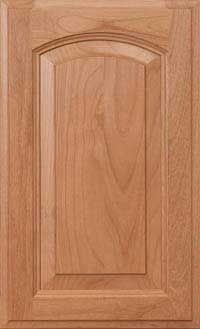

Patriot 7/8" Door (57)

  • Minimum Width: 10"
  • Maximum Width: 26.75"
  • Minimum Height: 10"
  • Maximum Height: 72"
  • Thickness Of Door: 0.875"
  • Center Rail at: 47.9921"

B1: If one minimum is used, add 4" to the other.

C1: Maximum can be exceeded with No Guarantee and possible option charge.

F1: Center rail required at 48" and above and is not arched.

N1: Center rail required on glass doors at 66" and above.

F2: Arched rail height at side of rail varies with width.

Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.

D9: Double arch doors available.
