3D profile for Liberty 3/4" door.

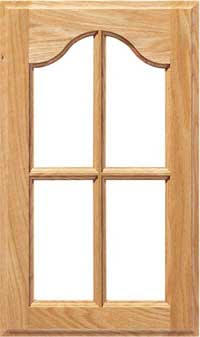

Liberty 3/4" French Lite Door (810F)
- Minimum Width: 11.5"
- Maximum Width: 26.25"
- Minimum Height: 11.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
B1: If one minimum is used, add 4" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
F1: Center rail required at 48" and above and is not arched.
N1: Center rail required on glass doors at 66" and above.
C2: Arched rail height at side of rail is 4-1/4".
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
D9: Double arch doors available.
