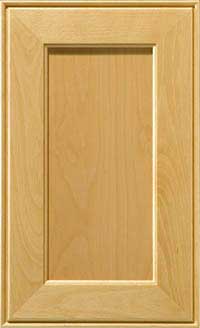

Hayes 3/4" Door (348)

  • Minimum Width: 9"
  • Maximum Width: 30"
  • Minimum Height: 8"
  • Maximum Height: 72"
  • Thickness Of Door: 0.75"
  • Center Rail at: 196.8504"

C1: Maximum can be exceeded with No Guarantee and possible option charge.

G2: All Birch doors have Alder frames. Birch frames are available at an additional cost.

I2: Requires additional delivery time.

M2: 5-Piece drawer front requires modified frame detail.

N3: Recessed.

N4: For Appliance Wing Cut add $10.00 per door.

P2: 5-Piece drawer fronts have 1-3/4" stiles and rails.

T4: No modification to outside edge detail.

U1: French Lites are available.

U3: Can be standard pair only. No Matched Pairs.

W3: Drawer Fronts come Horizontal Grain only.

Y5: For this style, there is an Absolute Minimum size that is less than the Cut Down Minimum. It is available at an additional cost.

Z6: Center rail is available at an additional cost.
