3D Profile for Chapman 3/4" door.

3D Profile for Chapman 3/4" door.

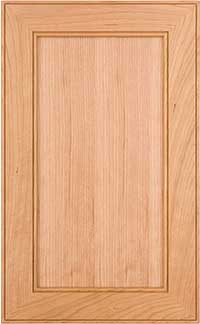

Chapman 3/4" Door (297)

  • Minimum Width: 7.5"
  • Maximum Width: 30"
  • Minimum Height: 7.5"
  • Maximum Height: 72"
  • Thickness Of Door: 0.75"
  • Center Rail at: 196.8504"

C1: Maximum can be exceeded with No Guarantee and possible option charge.

H9: Below minimum size W" x H" order as a 5-Piece drawer front.

I2: Requires additional delivery time.

M2: 5-Piece drawer front requires modified frame detail.
