Streamline® RTA Cabinets are ready-to-assemble, frameless components made with blind mortise and tenon construction. Know your costs upfront and receive your project ready to install.
- Made with 3/4" thick materials and 1/4” thick full backs
- All cabinets ship flat packed, ready-to-assemble
- Easy to quote and order on Anytime® Online
- Ships in 6-10 working days with assembly hardware
- Manufactured in Irwindale, CA and Monroe, NC facilities
Interior Materials
Irwindale, CA Facility
Plywood Maple
Prefinished
CC Grade
Import Birch
Prefinished
Import Birch
Unfinished
White Melamine
Hardrock Maple
Melamine
Fashion Grey
Melamine
Monroe, NC Facility
Plywood Maple
Prefinished
CC Grade
Plywood Maple
Prefinished
B Grade
Plywood Maple
Unfinished
B Grade
White Melamine
Hardrock Maple
Melamine
Edgebanding
Find a variety of edgebanding options to support your projects.
- Edgeband to match cabinet interior
- PVC matches to Deco-Form® colors
- PVC matches to Solvent-Based Finish paint colors
- WoodTape pre-finished and unfinished in top wood species
- Additional options by request
Configurations
Custom sizes are available from 6" W x 6" H x 6" D to maximum 48" W x 95 1/2" H x 36" D, depending on configuration.
Upper Cabinet
Base Cabinet

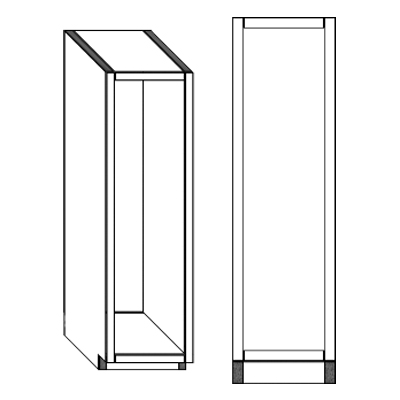

Tall Pantry Cabinet

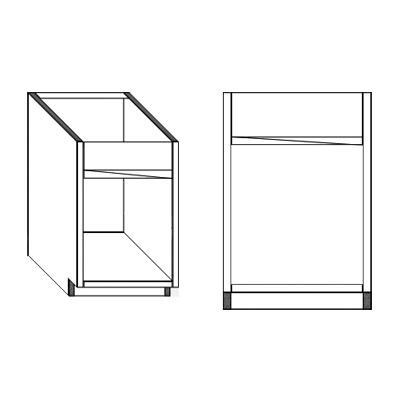

Sink Vanity Cabinet

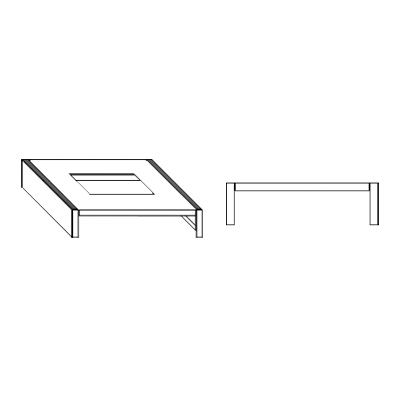

Pencil Drawer Cabinet

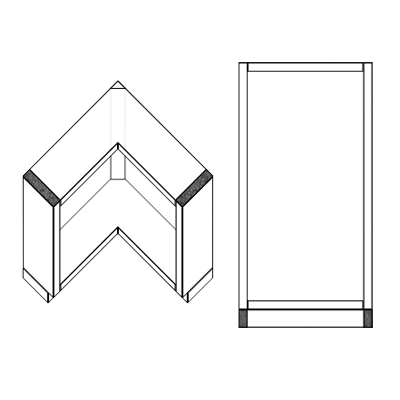

Corner Right Angle Base

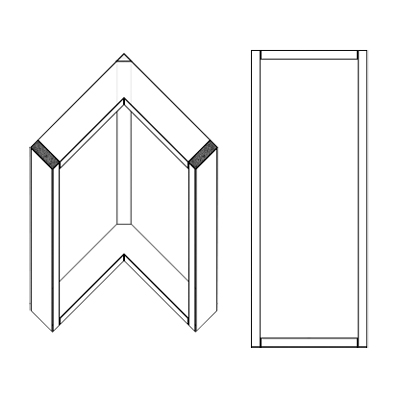

Corner Right Angle Upper

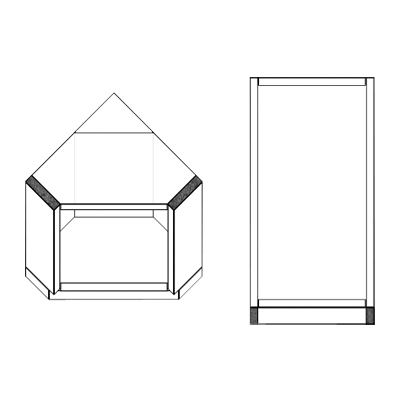

Corner Diagonal Base

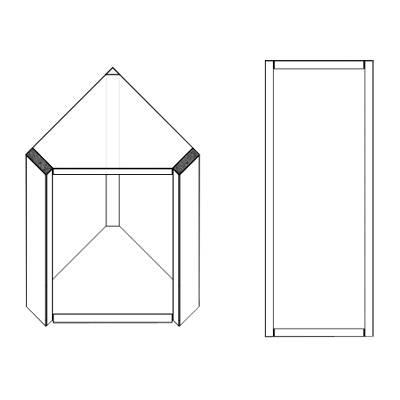

Corner Diagonal Upper

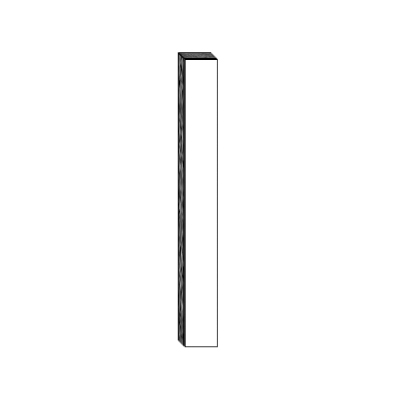

Panel, Stock, Fillers Cabinet
Specifications
Options:
- Adjustable Shelf Holes - Machined when adjustable shelves are added to the opening. Pattern starts 6-8” from the top and ends approx. 6” from the bottom. Hole placement - 32MM on center.
- Hinge Boring - Boring placement is 3” from each end to align with our hinge plate machining.
- Salice Hinges - Hinge Bore Pattern A
- Drawer Glide Boring - When a drawer front is selected, cabinet sides are predrilled for side mount or undermount drawer glides.
- Assembly Holes - Predrilled holes used for assembly.
- Edgebanding - Applied to parts and matched to color selected.
- Toe Kick - An Integral Toe Kick at 4”H x 3”D is standard.
- Inside cabinet depth is 1" short of the outside depth. There is an inset back with nailers on the outside.
- Assembly screws, euro screws and shelf pins are included with each cabinet.
Components:
- Left Side
- Top
- Stretcher
- Bottom
- Toe Kick Skin
- ¼” Back
- Nailer (quantity 2)
- Right Side
Learn How to Assemble Streamline® RTA Cabinets
(Must be logged into Anytime® to view)
Benefits
Increase Profitability
- Fixed costs
- Known profit margin
- No waste, no overtime
Save Time
- Average lead time is 6 working days
- Assemble cabinets in 5-7 minutes each, with hardware 9 minutes
- One vendor and one purchase order
Increase Capacity
- Quote and close more jobs
- Just-in-time inventory
- Scalable support when you reach capacity
Intelligent Construction
- 100% custom configurations
- Full 3/4” sides, top, bottom and shelves
- Each part is labeled for faster assembly
Ordering with Anytime® Online Account Management
- Quote and place orders on your schedule
- Component sizes are calculated based on cabinet size
- View order tracking
- View and pay invoices
Shipping
- Bicoastal manufacturing from California or North Carolina, based on your location
- Orders are palletized for easy unload and assembly
