3D profile for Terracina 3/4" door.

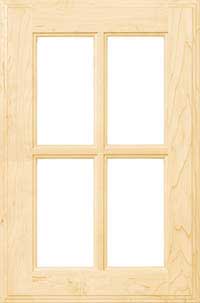

Terracina 3/4" French Lite Door (390F)
- Minimum Width: 13"
- Maximum Width: 30"
- Minimum Height: 13"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
C1: Maximum can be exceeded with No Guarantee and possible option charge.
G1: Center rail required at 50" and above.
G2: All Birch doors have Alder frames. Birch frames are available at an additional cost.
N1: Center rail required on glass doors at 66" and above.
N2: 5-Piece drawer fronts have 1-1/2" rails.
N4: For Appliance Wing Cut add $10.00 per door.
U1: French Lites are available.
U3: Can be standard pair only. No Matched Pairs.
W3: Drawer Fronts come Horizontal Grain only.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
Y5: For this style, there is an Absolute Minimum size that is less than the Cut Down Minimum. It is available at an additional cost.
H1: Center rail required at 50" and above and is not arched.
