3D profile for Square 3/4" Solid Panel door with P3, IE3, and OE4 profiles.

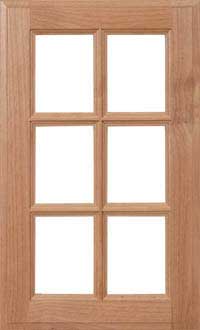

Square 3/4" French Lite Door (151F)
- Minimum Width: 11.5"
- Maximum Width: 30"
- Minimum Height: 11.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
A1: If one minimum is used, add 2" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
D4: Glass and French Lites come standard with Rubber Stops.
E1: Center rail required at 48" and above.
N1: Center rail required on glass doors at 66" and above.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
