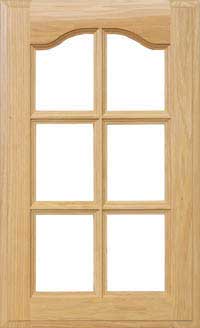

Ranger 3/4" French Lite Door (432F)

  • Minimum Width: 11.5"
  • Maximum Width: 25.75"
  • Minimum Height: 11.5"
  • Maximum Height: 72"
  • Thickness Of Door: 0.75"
  • Center Rail at: 66"

C1: Maximum can be exceeded with No Guarantee and possible option charge.

G1: Center rail required at 50" and above.

N1: Center rail required on glass doors at 66" and above.

Q1: Glass Doors have 2-1/4" stiles and rails.

S1: Center rail, if required, is 2-1/2".

Y1: Arched rail height at side of rail is 3".

G2: All Birch doors have Alder frames. Birch frames are available at an additional cost.

Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.

D9: Double arch doors available.
