3D profile for Mustang 3/4" door.

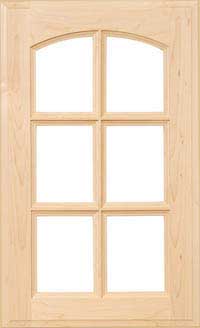

Mustang 3/4" French Lite Door (907F)
- Minimum Width: 11.5"
- Maximum Width: 25.75"
- Minimum Height: 11.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
C1: Maximum can be exceeded with No Guarantee and possible option charge.
G1: Center rail required at 50" and above.
N1: Center rail required on glass doors at 66" and above.
Q1: Glass Doors have 2-1/4" stiles and rails.
S1: Center rail, if required, is 2-1/2".
F2: Arched rail height at side of rail varies with width.
G2: All Birch doors have Alder frames. Birch frames are available at an additional cost.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
D9: Double arch doors available.
