3D profile for Laguna 3/4" door.

3D profile for Laguna 3/4" door.

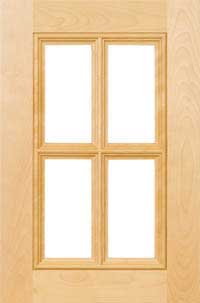

Laguna 3/4" French Lite Door (853F)

  • Minimum Width: 13"
  • Maximum Width: 30"
  • Minimum Height: 13"
  • Maximum Height: 72"
  • Thickness Of Door: 0.75"
  • Center Rail at: 66"

A1: If one minimum is used, add 2" to the other.

C1: Maximum can be exceeded with No Guarantee and possible option charge.

E1: Center rail required at 48" and above.

N1: Center rail required on glass doors at 66" and above.

S1: Center rail, if required, is 2-1/2".

W1: Minimum French Lite opening required 3-1/2" x 3-1/2" before molding.

H2: Door comes standard No Lip/No Detail (NLND).

I2: Requires additional delivery time.

Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
