3D profile for Holden 3/4" door.

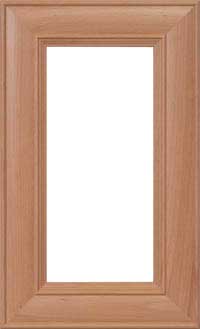

Holden 3/4" Glass Door (567G)
- Minimum Width: 9"
- Maximum Width: 30"
- Minimum Height: 9"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 196.8504"
A1: If one minimum is used, add 2" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
E1: Center rail required at 48" and above.
H9: Below minimum size W" x H" order as a 5-Piece drawer front.
I2: Requires additional delivery time.
M2: 5-Piece drawer front requires modified frame detail.
N1: Center rail required on glass doors at 66" and above.
V1: French Lites are not available.
Z6w: Center rail is available at an additional cost.
