3D profile for Estrella 3/4" door.

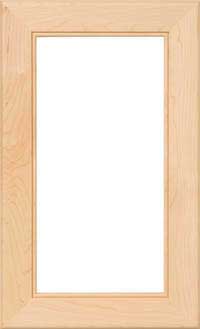

Estrella 3/4" Glass Door (354G)
- Minimum Width: 7.5"
- Maximum Width: 30"
- Minimum Height: 7.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 196.8504"
C1: Maximum can be exceeded with No Guarantee and possible option charge.
H9: Below minimum size W" x H" order as a 5-Piece drawer front.
I2: Requires additional delivery time.
M2: 5-Piece drawer front requires modified frame detail.
Y5: For this style, there is an Absolute Minimum size that is less than the Cut Down Minimum. It is available at an additional cost.
Monroe, NC and Irwindale, CA manufacturing.
