3D profile for El Dorado 3/4" door.
945 Mullion used for East Coast Manufacturing

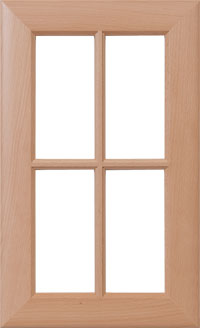

El Dorado 3/4" French Lite Door (824F)
- Minimum Width: 12.5"
- Maximum Width: 30"
- Minimum Height: 12.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 196.8504"
A1: If one minimum is used, add 2" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
I2: Requires additional delivery time.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
Y5: For this style, there is an Absolute Minimum size that is less than the Cut Down Minimum. It is available at an additional cost.
Z6w: Center rail is available at an additional cost.
