3D profile for Diplomat 7/8" door.

3D profile for Diplomat 7/8" door.

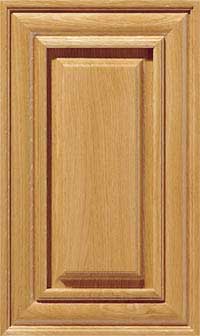

Diplomat 7/8" Door (598)

  • Minimum Width: 9"
  • Maximum Width: 30"
  • Minimum Height: 9"
  • Maximum Height: 72"
  • Thickness Of Door: 0.875"
  • Center Rail at: 196.8504"

A1: If one minimum is used, add 2" to the other.

C1: Maximum can be exceeded with No Guarantee and possible option charge.

E1: Center rail required at 48" and above.

N1: Center rail required on glass doors at 66" and above.

V1: French Lites are not available.

I2: Requires additional delivery time.

M2: 5-Piece drawer front requires modified frame detail.

H9: Below minimum size W" x H" order as a 5-Piece drawer front.

Use caution when boring for European hinges.
