3D profile for Cougar 7/8" door.

3D profile for Cougar 7/8" door.

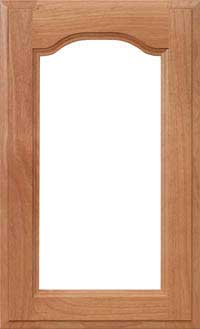

Cougar 7/8" Glass Door (230G)

  • Minimum Width: 10"
  • Maximum Width: 26.75"
  • Minimum Height: 9"
  • Maximum Height: 72"
  • Thickness Of Door: 0.875"
  • Center Rail at: 66"

C1: Maximum can be exceeded with No Guarantee and possible option charge.

G1: Center rail required at 50" and above.

N1: Center rail required on glass doors at 66" and above.

S1: Center rail, if required, is 2-1/2".

A2: Arched rail height at side of rail is 3-1/2".

G2: All Birch doors have Alder frames. Birch frames are available at an additional cost.

Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.

D9: Double arch doors available.
