3D profile for Cathedral Arch 3/4" Recessed Panel door with IE3 and OE4 profiles.
-

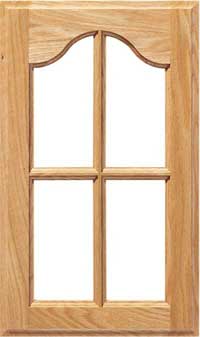

Cathedral Arch 3/4" Recessed French Lite Door shown in Red Oak Select with Clear Finish with IE3 and OE4 profiles.
Cathedral Arch 3/4" Recessed French Lite Door (156F)
- Minimum Width: 11.5"
- Maximum Width: 26.25"
- Minimum Height: 11.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
C1: Maximum can be exceeded with No Guarantee and possible option charge.
C2: Arched rail height at side of rail is 4-1/4".
D4: Glass and French Lites come standard with Rubber Stops.
G1: Center rail required at 50" and above.
G2: All Birch doors have Alder frames. Birch frames are available at an additional cost.
N1: Center rail required on glass doors at 66" and above.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
