3D profile for Berrington 3/4" door.

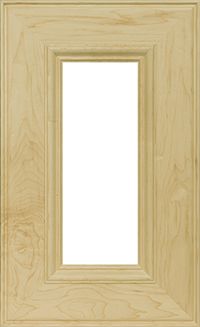

Berrington 3/4" Glass Door (391G)
- Minimum Width: 9"
- Maximum Width: 30"
- Minimum Height: 9"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
C1: Maximum can be exceeded with No Guarantee and possible option charge.
G1: Center rail required at 50" and above.
G2: All Birch doors have Alder frames. Birch frames are available at an additional cost.
I2: Requires additional delivery time.
N1: Center rail required on glass doors at 66" and above.
N4: For Appliance Wing Cut add $10.00 per door.
P2: 5-Piece drawer fronts have 1-3/4" stiles and rails.
T1: Center rail, if required, is 3".
T4: No modification to outside edge detail.
U1: French Lites are available.
U3: Can be standard pair only. No Matched Pairs.
W1: Minimum French Lite opening required 3-1/2" x 3-1/2" before molding.
W3: Drawer Fronts come Horizontal Grain only.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
