3D profile for AB770 door.

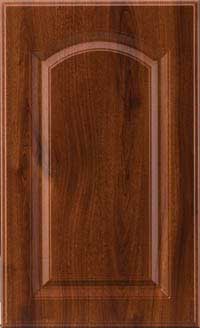

AB770 3/4" Door (770)
- Minimum Width: 9.5"
- Maximum Width: 46"
- Minimum Height: 10"
- Maximum Height: 96"
- Thickness Of Door: 0.75"
- Center Rail at: 0"
P6: French Lites have a single vertical mullion on center only. Multiple vertical mullions available on arc doors at an additional cost.
G7: No guarantee on high gloss doors over 42".
J8: Minimum routed drawer front height is 5-1/2".
A9: Routed drawer fronts do not come with an arch unless otherwise specified.
F9: Doors ordered below Minimum Height order as a drawer Front and the Routed Drawer Front option charge will apply.
