3D Profile for Bayshore 3/4" door.

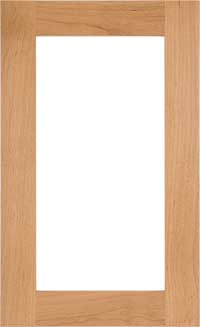

Bayshore 3/4" Glass Door (288G)
- Minimum Width: 7.5"
- Maximum Width: 30"
- Minimum Height: 7.5"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
A1: If one minimum is used, add 2" to the other.
B5: If changes to type or placement of grooves is wanted, call for availability and pricing.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
E1: Center rail required at 48" and above.
G3: Beaded panel grooves are 2" apart.
H2: Door comes standard No Lip/No Detail (NLND).
I2: Requires additional delivery time.
N1: Center rail required on glass doors at 66" and above.
S4: Beaded grooves come on or off center depending on the width of the door.
Y4: Absolute maximum door width with no center stile is 32-1/2", no guarantee.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
