3D profile for Cascade 3/4" door.
-

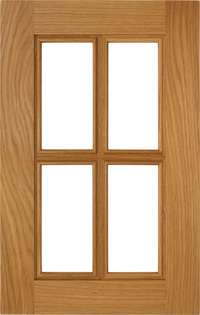

Cascade 3/4" French Lite Door shown in White Oak Select with Clear Finish. -

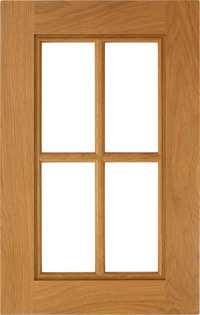

Cascade 3/4" French Lite Door with 945 Mullion in Cherry Select with Clear Finish. (East Coast Manufacturing)
945 Mullion used for East Coast Manufacturing
Cascade 3/4" French Lite Door (858F)
- Minimum Width: 13"
- Maximum Width: 30"
- Minimum Height: 13"
- Maximum Height: 72"
- Thickness Of Door: 0.75"
- Center Rail at: 65.9843"
C1: Maximum can be exceeded with No Guarantee and possible option charge.
G1: Center rail required at 50" and above.
N1: Center rail required on glass doors at 66" and above.
S1: Center rail, if required, is 2-1/2".
W1: Minimum French Lite opening required 3-1/2" x 3-1/2" before molding.
H2: Door comes standard No Lip/No Detail (NLND).
I2: Requires additional delivery time.
Z4: Between Cut Down Min. and Min. Size W" x H", additional small stile/rail charge applies. Same cost as 5-Piece drawer front charge.
