3D profile for Ambassador 7/8" door.

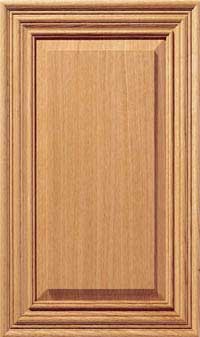

Ambassador 7/8" Door (540)
- Minimum Width: 8"
- Maximum Width: 30"
- Minimum Height: 8"
- Maximum Height: 72"
- Thickness Of Door: 0.875"
- Center Rail at: 196.8504"
A1: If one minimum is used, add 2" to the other.
C1: Maximum can be exceeded with No Guarantee and possible option charge.
U1: French Lites are available.
I2: Requires additional delivery time.
H9: Below minimum size W" x H" order as a 5-Piece drawer front.
Z6w: Center rail is available at an additional cost.
